Extreme power with easy-upgrade expandability
The ASUS TS300-E8-PS4 supports the latest Intel® Xeon® E3-1200 v3 processor family, delivering extreme computing power, highly scalable expandability, more flexible storage with RAID, and complete remote server management through ASWM Enterprise and ASMB7-iKVM. It also represents ASUS efforts in green design, featuring an 80 PLUS Bronze power supply for enhanced energy savings. Combined with its great computing power, it offers an ideal server choice for SMBs, who require superior performance and controllable costs.
The latest Intel® CPUs
The TS300-E8-PS4 is ready for new-generation Intel® Xeon® 22nm processors, which bring a significant performance improvement over previous-generation CPUs.
PCI Express 3.0-ready with workstation expandability and extensive I/O
The TS300-E8-PS4 ships with one PCI Express 3.0 x16 slot, designed to accommodate the power of graphics cards and other add-on components. Whether for professional graphics work, heavy duty multimedia, or dedicated gaming, more than ample graphics power can be applied whenever needed. It also has a PCI slot for legacy LAN cards, graphics cards, and sound card applications. Four USB 3.0 ports provide up to ten times the data transfer speeds of USB 2.0.
Digital power and green design
Exclusive ASUS Dr. MOS and Beat Thermal Chokes (BTC) help lower operating temperatures and promote efficiency for significant power savings and stability increases. The TS300-E8-PS4 also features an 80 PLUS Bronze power supply to reduce power loss and power consumption, helping consumers save on energy bills.
ASUS PIKE RAID provides high reliability
ASUS PIKE technology allows the TS300-E8-PS4 to support flexible storage options. Customers can upgrade to highly reliable enterprise-grade SAS 6Gb/s storage, while maintaining backward compatibility with existing SAS/SATA 1.5Gb/s and 3Gb/s storage infrastructure. Creating RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, and RAID 60 configurations is made easy.
Comprehensive remote management
ASUS presents the most complete remote server management, including out of band ASMB7-iKVM and in-band ASWM Enterprise. Out-of-band ASMB7-iKVM is an effective remote server supervision tool that provides OS-independent and cross-platform monitoring of servers. It covers parameters such as temperatures, voltages, and fan status. MIS can be informed of server conditions from anywhere and at any time via instant event notifications. In-band ASWM Enterprise provides “one on many” usage, its centralized management allowing administrators access to BIOS updates, remote control, and power supervision on all servers simultaneously.
| Attribute |
Value |
| Processor |
1 x Socket LGA1150
Intel Xeon processor E3-1200 v3 product family
4th Gen Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors
Generation: E8
Core Logic: Intel C224 Chipset |
| Memory |
Installed: 8 GB UDIMM ECC
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
Dual Channel DDR3 1600/1333 UDIMM with ECC
Memory Size :
8GB, 4GB, 2GB UDIMM |
| Storage Capacity |
SATA Controller:
Intel C224,
4 x SATA3 6Gb/s ports,
2 x SATA2 3Gb/s ports,
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only),
LSI MegaRAID (For Linux/Windows), (Support Software RAID 0, 1, 10) |
| Connectivity |
4 x Intel I210AT + 1 x Mgmt LAN |
| Display |
Graphic: Aspeed AST2300 with 32MB VRAM |
| Interface |
5 x RJ-45 ports (One for ASMB7-iKVM)
4 x USB 3.0 ports (Front x 2, Rear x 2)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x Internal A Type USB Port
1 x VGA port
1 x PS/2 KB/MS port |
| Software |
ASWM Enterprise 2.0
OS Support:
CentOS 5.8/6.3 64-bit
CentOS 5.8/6.2 64-bit
Windows Server 2008 R2 Enterprise
Windows Server 2012
Windows 8 32/64-bit
RedHat Enterprise Linux AS5.8/6.3 64-bit
RedHat Enterprise Linux AS5.8/6.2 64-bit
SuSE Linux Enterprise Server 10 32/64-bit
SuSE Linux Enterprise Server 11 32/64-bit
Ubuntu Desktop 12.04 |
| Design |

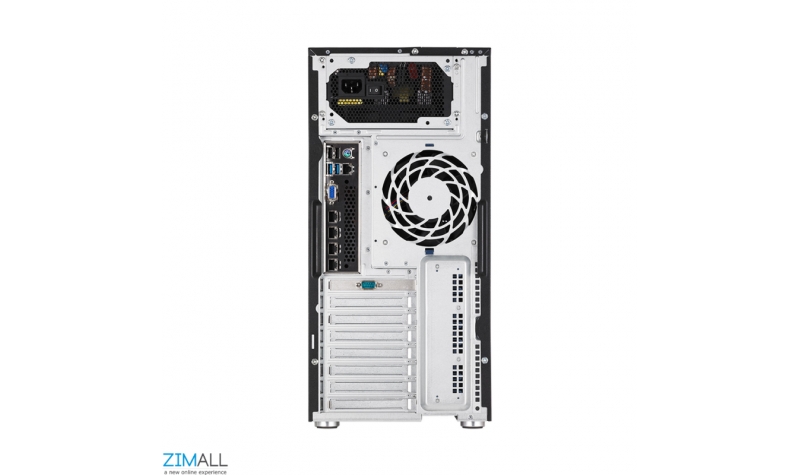

Chassis: ASUS T50A 5U Pedestal Chassis
MB: ASUS P9D-E/4L Server board
HDD Backplane: 1 x SAS/SATA Backplane (BP4LX-TRS8) (90-C1SDI0-00P0T)
Front Panel Board: 1 x Front I/O Board (FPB-TRS8A) (90SC00N0-M00000)
HDD Tray: 4 x Hot-swap 3.5" HDD trays (13GS1I0AM050-1)
HDD Cage: 1 x HDD CAGE KIT FOR T50A CHASSIS (VPSV0000-HS1000)
Fan: 1 x System Rear Fan (120mm x 38mm) (13G074186010), 1 x System Front Fan (80mm x 25mm) (13G074186020)
Optical Drive: 1 x DVD-RW (Optional) (17600-00010000) |
| Power |
500W 80PLUS Bronze Single Power Supply
Rating: 100-240V, 10A-6A, 50-60Hz, Class 1
Operation temperature: 10°C ~ 40°C / Non operation temperature: -40°C ~ 70°C
Non operation humidity: 20% ~ 90% ( Non condensing) |
